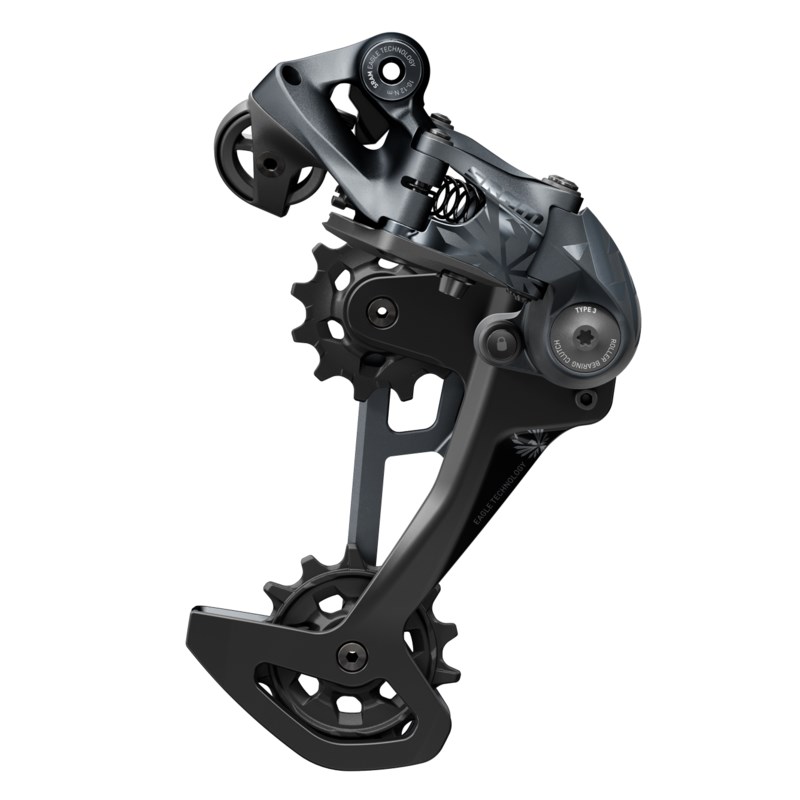

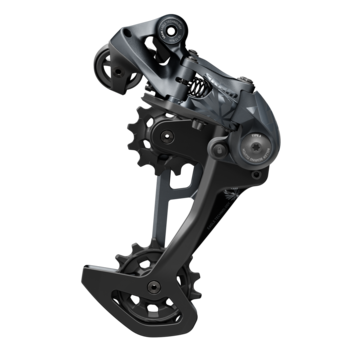

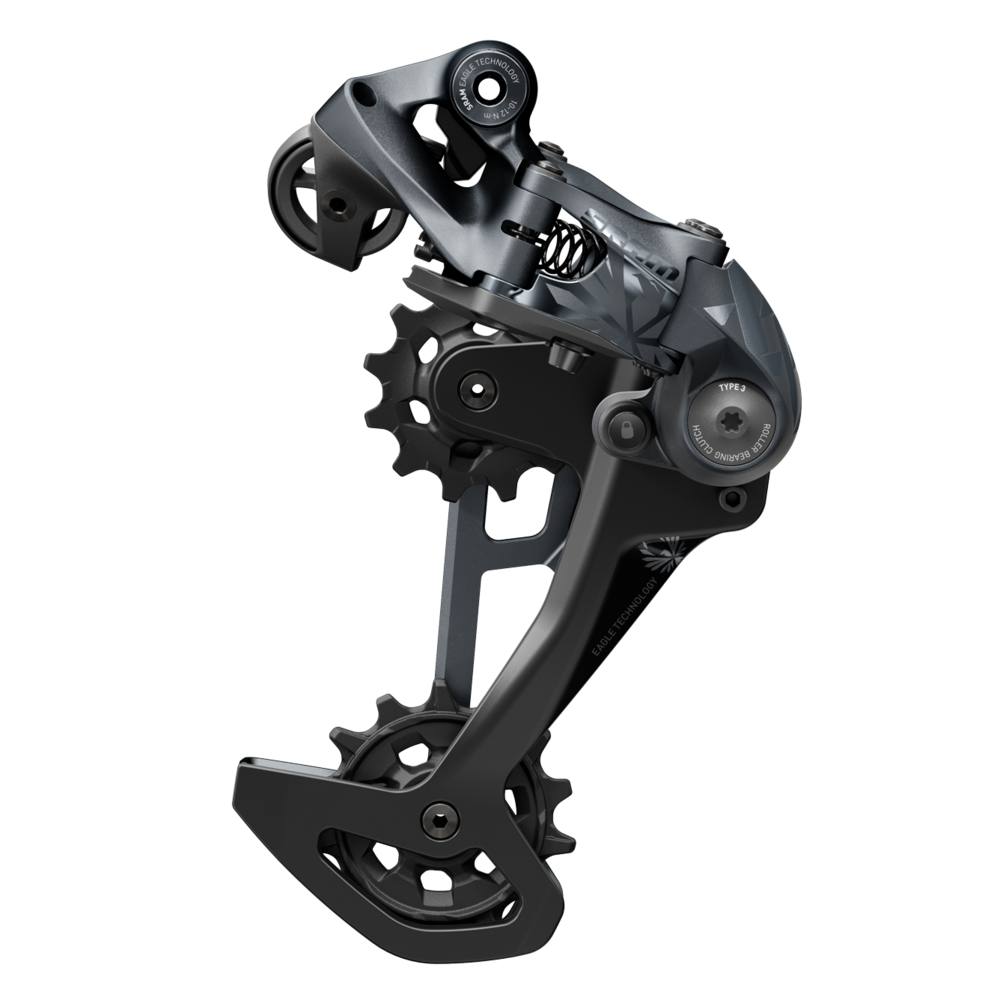

Name: XX1 Eagle Rear Derailleur
Brand: SRAM
SKU: RD-XX-1-B2

New

Description

Occupying a new realm in shifting performance, the redesigned XX1 Eagle derailleur gives no-compromise racers and dream-bike builders a true top-tier option. The crisp, precise XX1 shifting feel athletes rely on now features an updated cage geometry for improved chain management. Occupying its rightful place at the top of the Eagle ecosystem, the XX1 Eagle rear derailleur makes full use of the new 10-52t cassettes and is backwards compatible to also work with the 10-50t.

Read Less

Msrp

$323

Model ID

RD-XX-1-B2

Features

Updated cage geometry provides better chain retention and crisper shifting.
Comes in XX1 Eagle signature colorway as part of Eagle Colorsystem – to go with all cassette and chain color options - Black, Gold, Rainbow, HardChrome and all-new Copper.
Backwards compatible, works with 10-50t and new 10-52t cassettes.

See more features

See less features

Technology

CAGE LOCK

With CAGE LOCK technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just push the cage forward to create slack and lock it into place.

ROLLER BEARING CLUTCH

ROLLER BEARING CLUTCH technology eliminates derailleur bounce and chain slap without sacrificing precision.

X-ACTUATION

Developed specifically for SRAM 1x, X-ACTUATION keeps shifting sharp and consistent across the entire cassette.

X-HORIZON

This rear derailleur’s “straight parallelogram” design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.

X-SYNC

SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

Eagle

Eagle technology represents our newest 1x drivetrain technology. Eagle is a lighter, simpler, more durable, and easier to use drivetrain. Eagle features all-new 1x components, engineered for even greater durability and performance while maintaining a significant weight advantage over other drivetrain solutions. Eagle technology also provides an expanded gear range of 520%, which is equal to 2x11 drivetrains.

Learn More

Specifications

Speed (RD)	12
Cable pull ratio	X-actuation
Cage (RD)	n/a
Max tooth	52
Color (RD)	Lunar
Pulley bearings material	n/a
Cage material (RD)	n/a
Rear Derailleur Mount	MTB, UDH
Drivetrain Configuration	1x
RD Minimum (Cassette)	50
Shift Technology	X-Actuation
Chain Technology	Eagle
RD Capacity	42
RD Maximum (Cassette)	52
RD Smallest (Cassette)	10
