WELCOME TO REVERB AXS

Welcome to RockShox Reverb AXS, powered by AXS technology. This guide will walk you through preparing, installing, and setting up your seatpost system.

Here you will be able to customize your controls within the AXS ecosystem for a seamless and personalized on-trail experience. With a reduced drop force, Reverb AXS moves swiftly and smoothly, letting you stay locked in and fully focused on the trail ahead.

Let’s drop in!

Charge your battery | Extend the seatpost | Install | Configure

REGISTER YOUR REVERB

Register your RockShox Reverb AXS to receive tips to personalize, maintain, and service your seatpost. Plus, you can easily store your proof of purchase upon registration. Enter the serial number below to get started.

Scan QR Code

Serial Number Locator

Product Registration

Login to register

Right serial, wrong product? Contact us

PREPARE YOUR SETUP

STEP 1: CHARGE YOUR BATTERY

AXS batteries take an hour to charge and last for approximately 60 hours of riding time, meaning most riders need to charge roughly once a month. To preserve battery life, AXS components go to sleep when the bike is stationary. Shake it to wake it.

Related Image

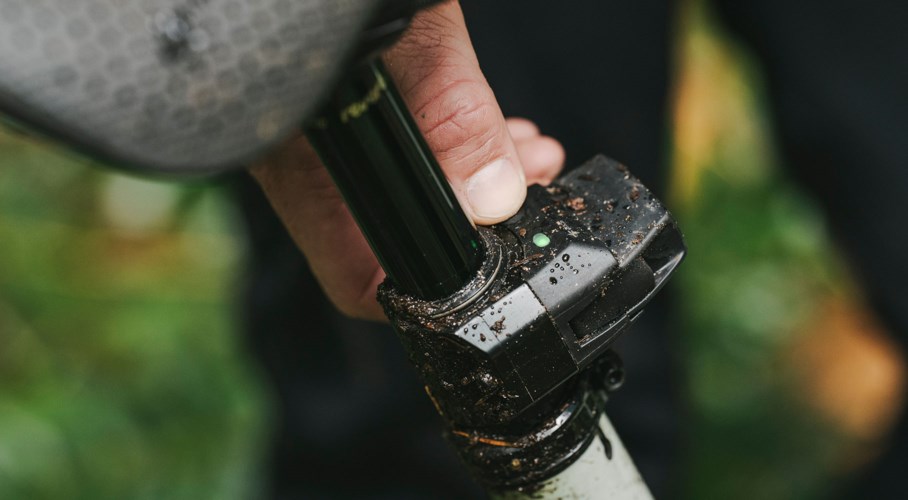

HOW TO CHECK YOUR BATTERY STATUS

An LED will flash on your seatpost and controller every time you engage them, indicating the battery status of each component. You can also press the AXS button on each component to check the status.

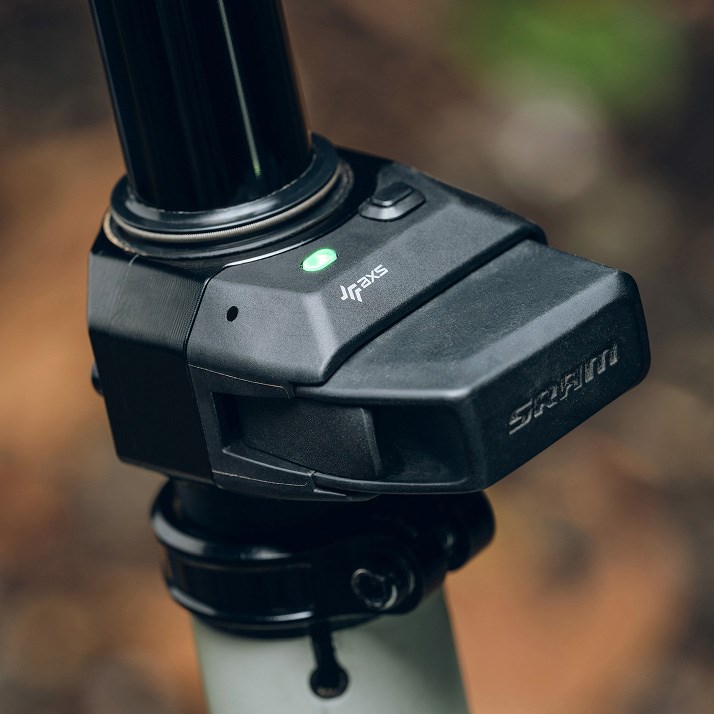

green battery status light on reverb axs

GREEN

More than 25% of battery charge remaining

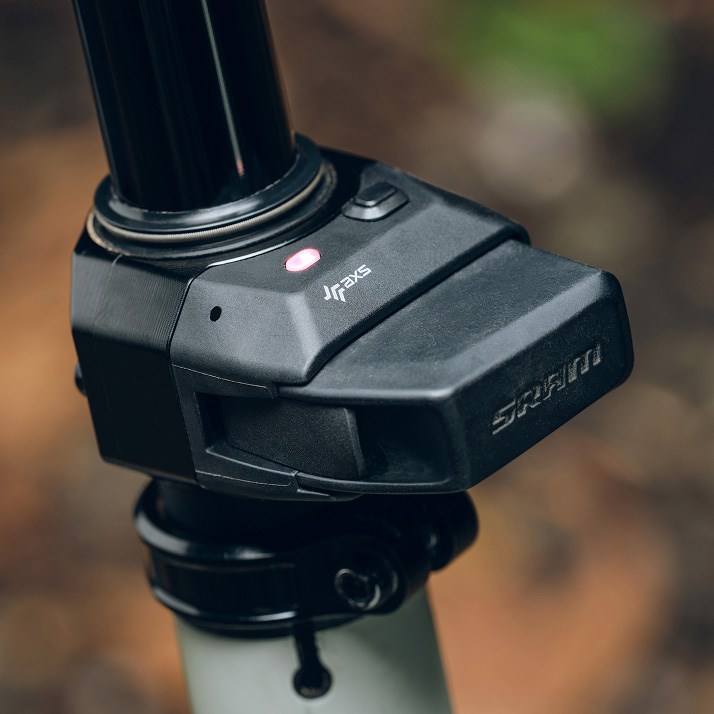

Red battery status light on reverb axs

RED

Between 10% and 25% of battery charge remaining

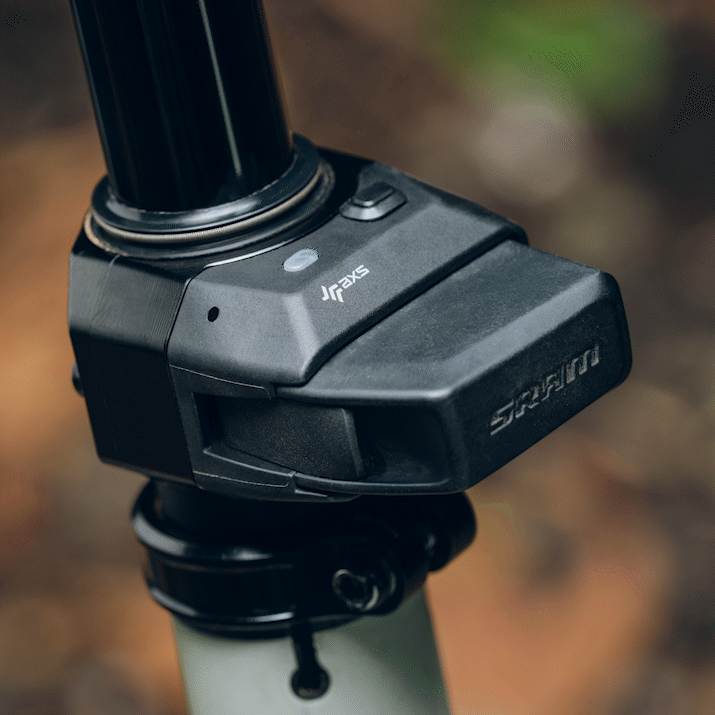

Flashing red status light on reverb axs

FLASHING RED

Less than 10% of battery charge remaining

01

Tech Tip: Any AXS battery will work as a swap-in. Shifting is typically a more critical aspect of riding, so swap your fresh(er) seatpost battery to your derailleur to save your ride without skipping a beat. Just remember to adjust your seatpost to your desired position before swapping out the battery.

STEP 2: EXTEND THE SEATPOST

Install the AXS battery and press the AXS button on the seatpost to extend it ... away from your face.

Tech Tip: Pressing the post’s AXS button will enter and exit Service Mode. Once you extend the seatpost, press the AXS button again to exit Service Mode.

INSTALLATION IS EASY

Apply friction paste, drop the seatpost into your frame to the desired height, and install your saddle. Reverb AXS is compatible with all saddle rail types and sizes, so you can confidently install your trusty saddle.

For the ability to completely customize your cockpit, Reverb AXS does not ship with a controller. If needed, install your controller. If you already have an AXS controller installed, we’ll walk through pairing in the next section.

Still need to pick out a controller? See the Compatibility Guide

Tech Tip: You’ll want to torque all bolts to spec before your first ride, but we recommend finding your perfect seatpost height, controller location, saddle position, and tilt before final tightening.

  • Seatpost Clamp Bolt: ≤6.7 N⋅m (≤59 in-lb),  but check with frame manufacturer, and torque to whichever is lower.
  • Saddle Clamp Bolts: 6 N⋅m (53 in-lb)

VIEW MANUAL

Related Image

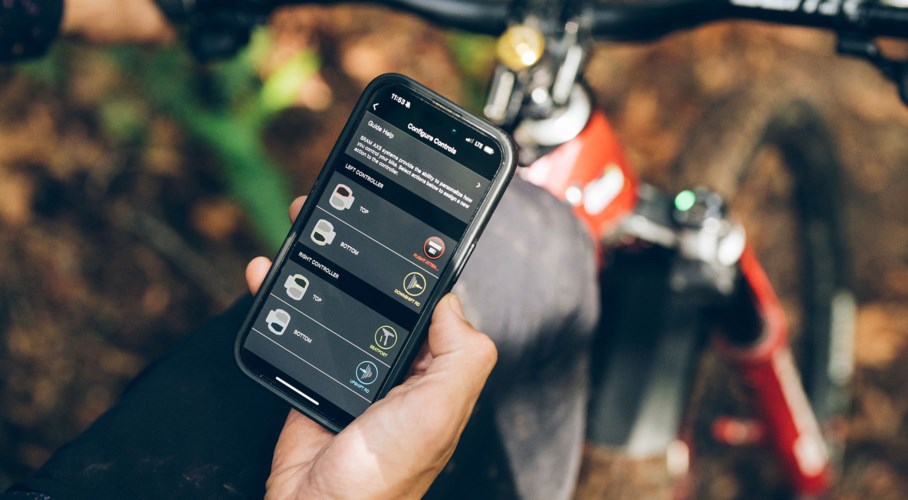

DOWNLOAD AND CONFIGURE

With access to controller customization, battery levels, firmware updates, and more, the SRAM AXS app is the most versatile tool in your arsenal.

If you are adding Reverb AXS to an existing bike with an AXS drivetrain, make sure all firmware is up to date before pairing in the new Reverb AXS seatpost. Learn how.

APPLE APP STORE  GOOGLE PLAY

WHAT ARE YOU PAIRING?

PAIRING INTO AN AXS SYSTEM:

1. Pairing a complete AXS system takes seconds. Pair your derailleur, controllers, and seatpost together into a single system for the most customization options.

2. AXS Controllers are programmable. Which button shifts up, which shifts down, which controls your Reverb AXS is all up to you. Just use the Configure Controls menu in the AXS App to simply invert controller button functions, or to reassign button functions across multiple controllers.

Tech Tip: While the bottom left controller button is the assigned Reverb button, we suggest playing with your controls to find what works best for you. For example, you could assign both top controllers button to your Reverb, the lower left button to shift the derailleur inboard, and the lower right to shift outboard.

Pair your Reverb AXS and AXS controller together. Pairing introduces your components to each other with a wireless handshake, so they form a secure and seamless group—and it only takes a few seconds. 

Tech Tip: If your seatpost and controller aren’t pairing together, make sure both components are on the most recent firmware.

Related Image

LEARN MORE

ALL ABOUT YOUR REVEB AXS


Get acquainted with your Reverb AXS, from customizing your controls to learning about ActiveRide, and more.
