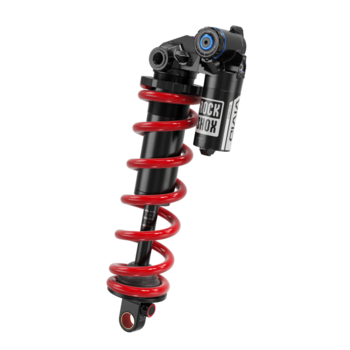

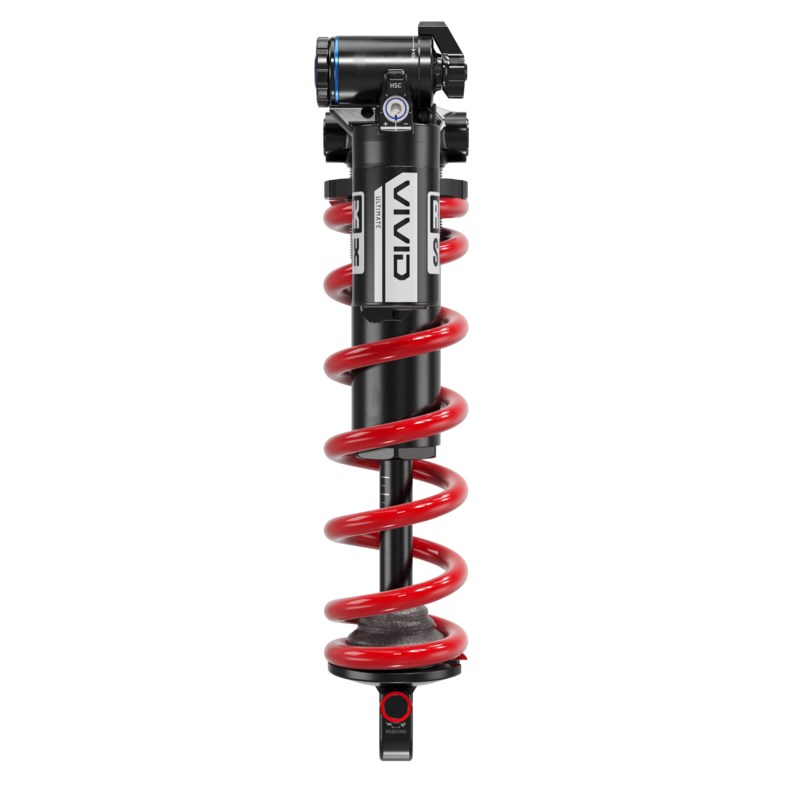

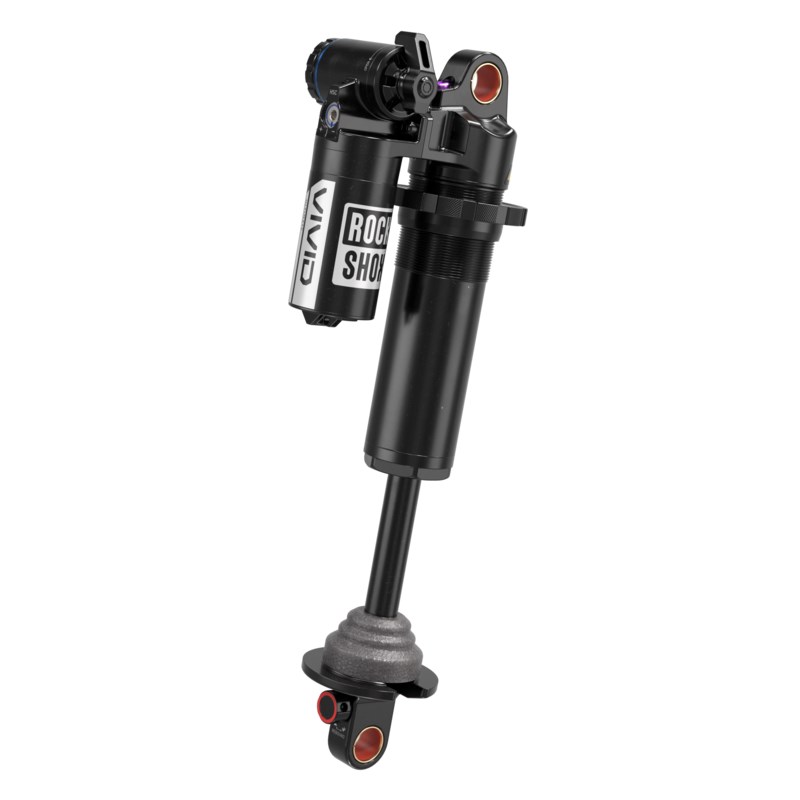

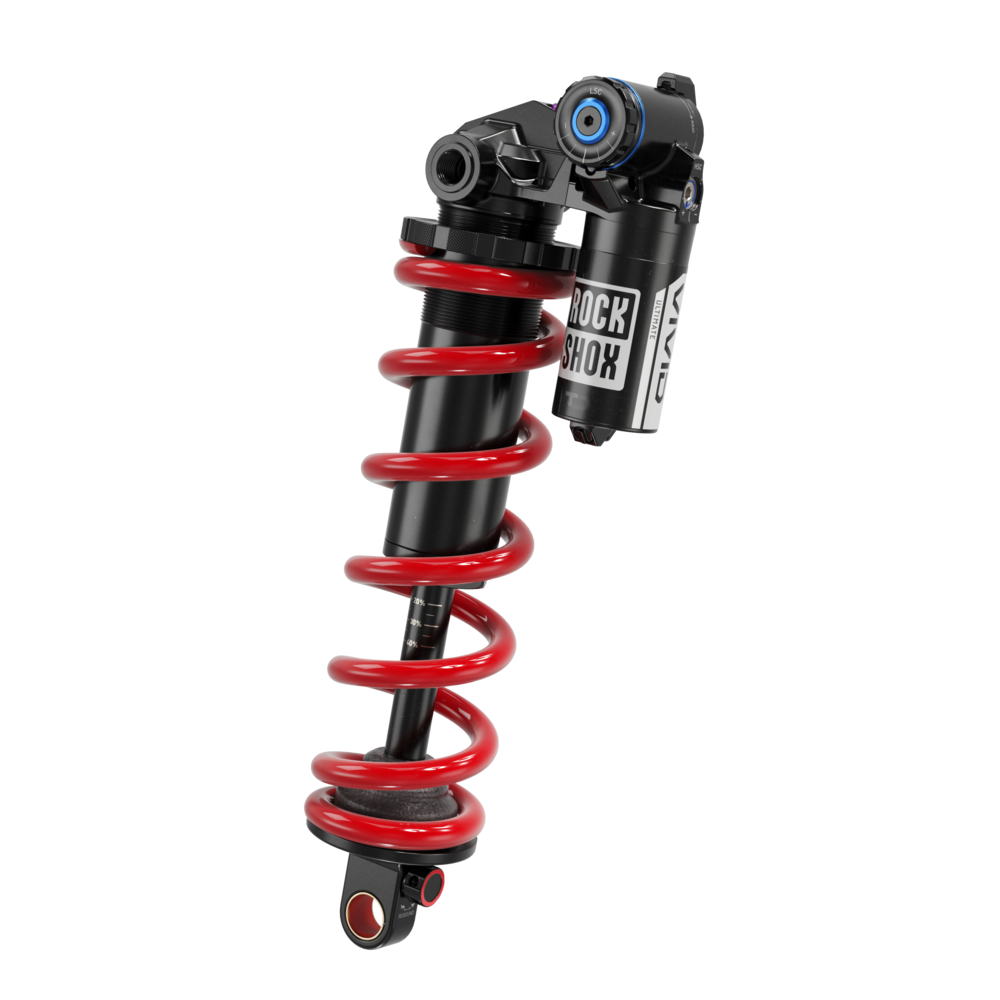

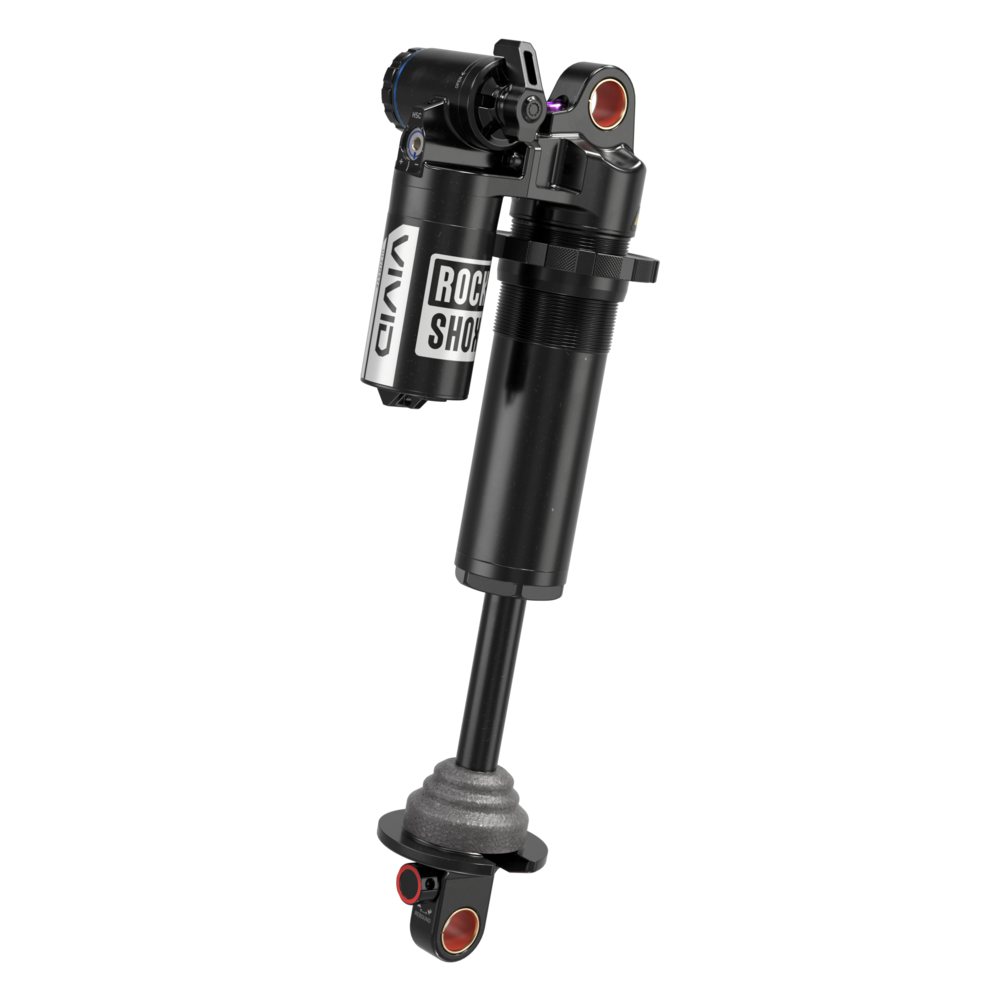

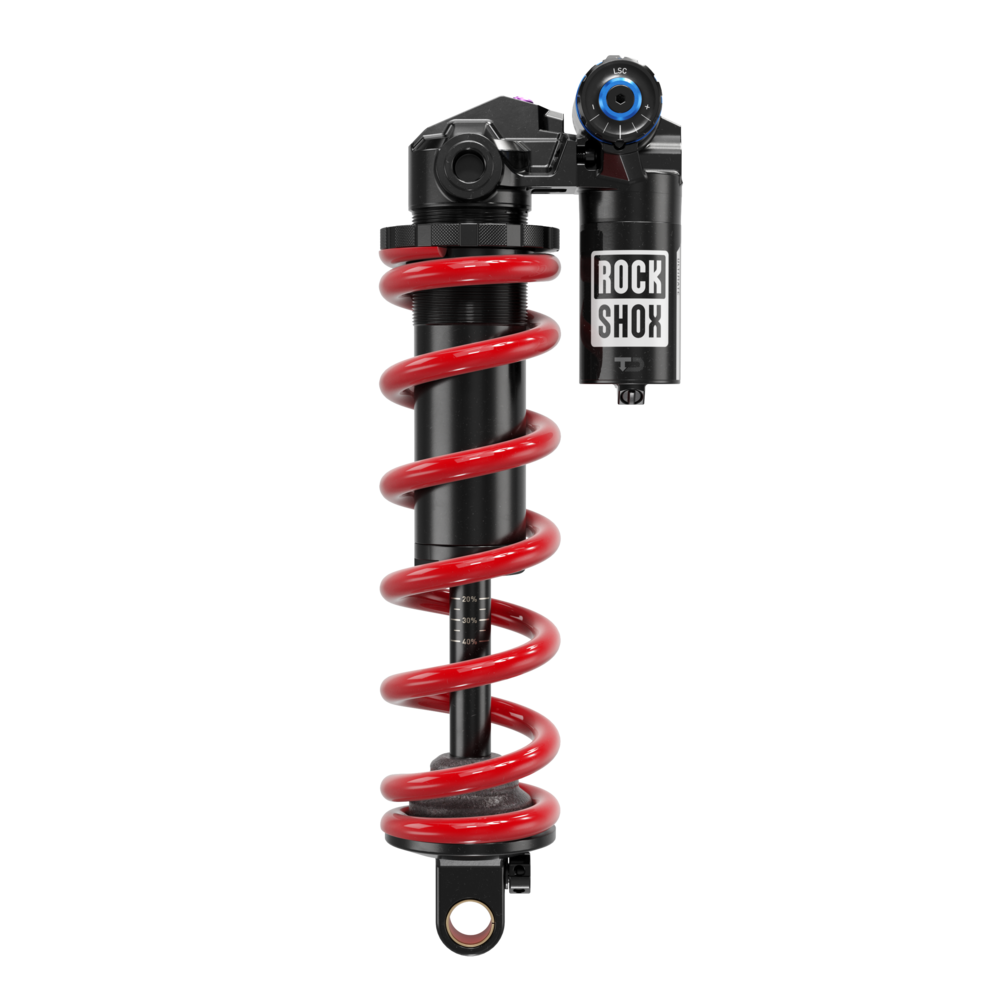

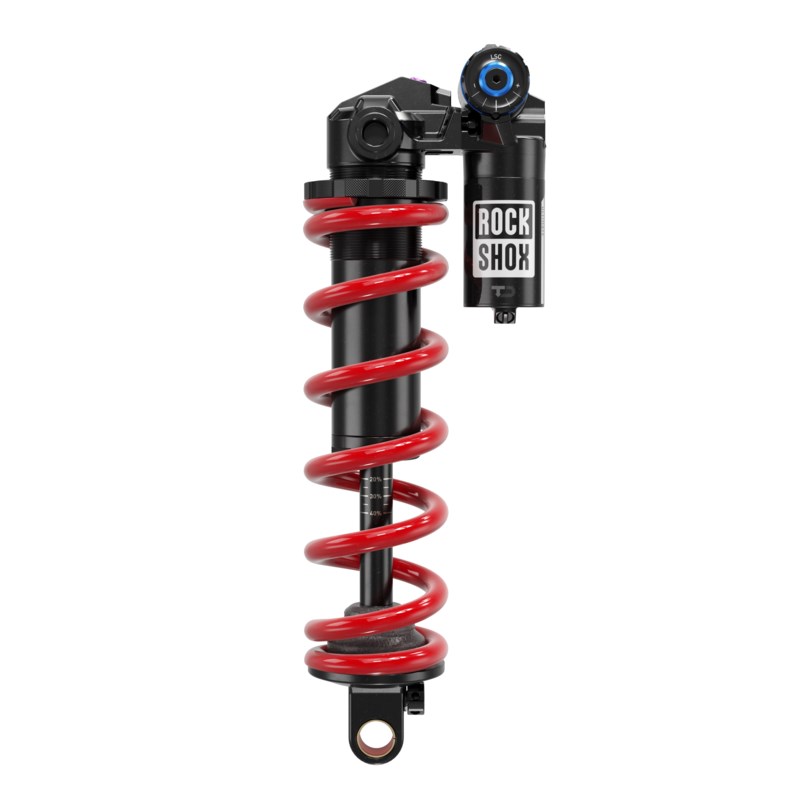

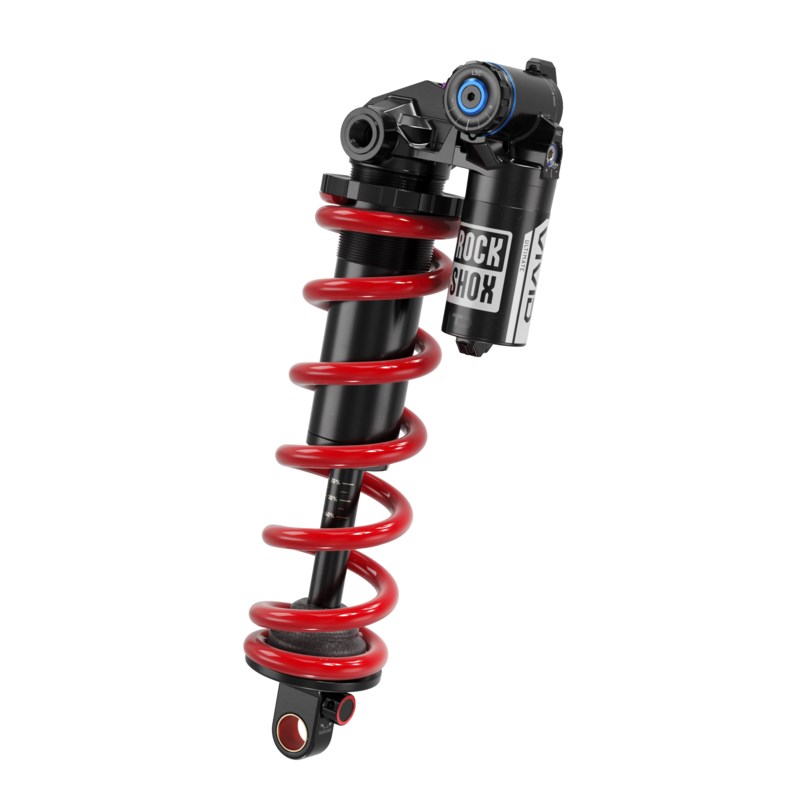

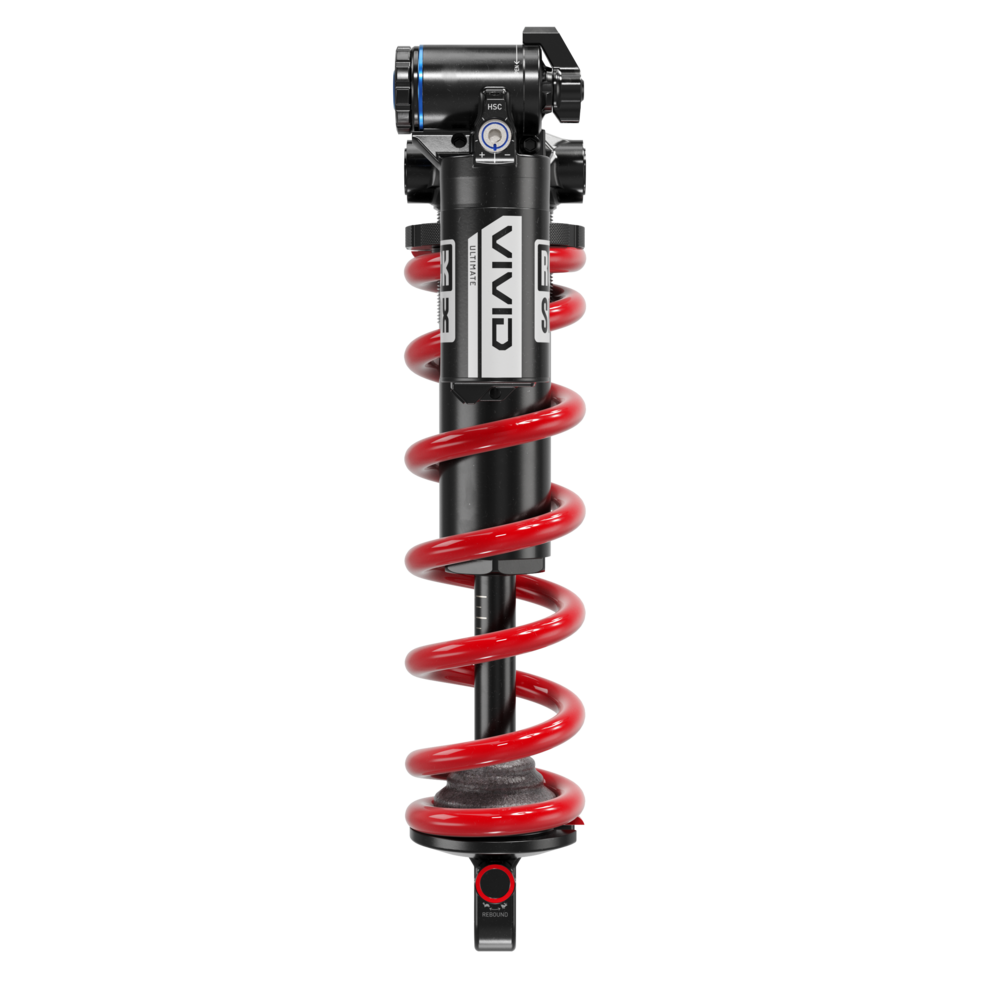

Name: Vivid Coil Ultimate
Brand: RockShox
SKU: RS-VIVC-ULT-C1

New

Description

The world’s best gravity racers need it. The roughest tracks demand it. Vivid Coil Ultimate is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2T positionsensitive damper. External, independent High and Low Speed Compression adjustments provide unreal sensitivity off-the-top, support and control in the mid-stroke, and Adjustable Hydraulic Bottom Out to cushion the harshest landings. It’s the unmistakable feel of coil, evolved with premium technology to give you world-class suspension performance.

Read Less

Msrp

$619 - $649

Model ID

RS-VIVC-ULT-C1

Features

TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
NEW TouchDown RC2T damper features Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency.
Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
Compatible with new Electric Red Coil Springs
Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel.
Maxima plush damping fluid reduces friction and silences damper noise.
20 clicks of rebound adjustment offer a wide range of tunability and accommodate more rider types.
The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
8x30 Bearing Adapter compatible

See more features

See less features

Technology

Metric Sizing

Metric sizing allows both suspension and frame manufacturers to simplify rear shock sizing and fitment in addition to increasing bushing overlap, which results in better traction and improved durability.

Maxima Plush Fluid

Developed with the world's fastest racers, on the world's toughest circuits. Maxima Plush Fluid is designed to protect from suspension wear, reduce friction, and silence damper noise while maintaining a consistent feel in all temperatures.

Adjustable Hydraulic Bottom Out

Adjustable Hydraulic Bottom Out is the extra assurance that can make the difference between hitting big air or bailing last minute. Five different compression settings allow you to customize the cushioning you experience upon impact. So go ahead and commit—you’re in for a soft landing.

Learn More

Specifications

Eye to eye / Stroke	165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type	RC2T Adj. Hydraulic Bottom Out
Rebound tune	R23, R25, R55, R85
Compression tune	C26, C30, C34, C37, C43
Lockout force	X0, X2, X4
Shaft Eyelet	Bearing, No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet	Bearing, No Bushing, Standard, Trunnion
E-Bike Approved	E-bike Approved
Weight (g)	902
Weight Based On	230x65, with 350lb spring, standard/standard
