Code R

Related Image

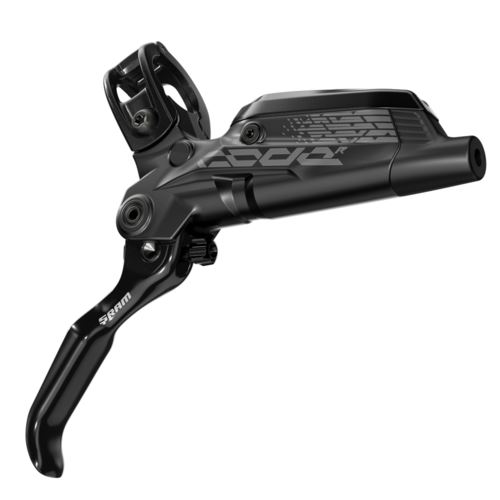

Code R

Model ID: DB-CODE-R-B1

Specifications

Enter serial number for exact specs

Locate serial number on your product

Application (DB)	MTB
Brake type	Hydraulic
Blade material	Aluminum - Forged
Contact adjust	No
Color (DB)	Dark Grey Paint, Diffusion Black
Orientation	Front, Rear
Pad type (Disc)	Steel-backed metal sintered, Steel-backed organic
Bracket (Disc Brake)	Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Reach adjust	Tool-free
Hydraulic fluid	DOT 5.1
Lever pivot	Bushing
