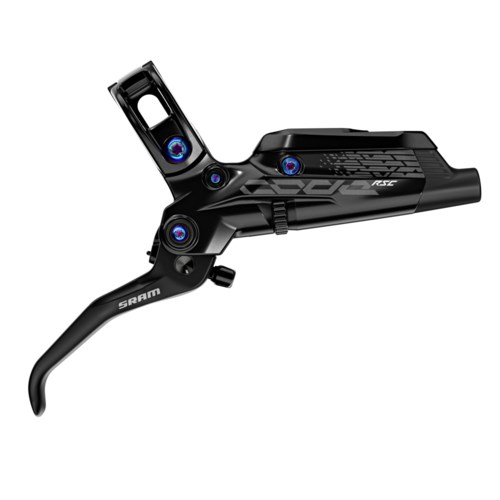

Code RSC

Related Image

Code RSC

Model ID: DB-CODE-RSC-A1

Specifications

Enter serial number for exact specs

Locate serial number on your product

Application (DB)	MTB
Brake type	Hydraulic
Blade material	Aluminum - Forged
Contact adjust	Yes
Color (DB)	Black Anodized, Black Anodized w/Rainbow Hardware
Orientation	Front, Rear
Pad type (Disc)	Steel-backed metal sintered, Steel-backed organic
Bracket (Disc Brake)	Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Reach adjust	Tool-free
Hydraulic fluid	DOT 5.1
Lever pivot	Bearing

Manuals & Documents

Show All Available Languages

Videos

Show All Available Languages

SRAM Tech: Routine Mountain Bike Check

SRAM: Disc Brake Bed-In Procedure

Stealth-A-Majig™ Hose Barb and Compression Fitting Installation

Bleeding Edge Overview

Instalación del conector del latiguillo y el racor de compresión Stealth-a-majig™

Installation du raccord cannelé et de l’olive de compression Stealth-a-majig™

Montage von Stealth-a-majig™ Leitungsnippel und Olive

SRAM MTB : purge des freins Bleeding Edge

SRAM MTB Brake Lever Adjustments

SRAM MTB Guide RSC, RS, R, and DB5 (Model Year 2016 and Earlier) Hydraulic Brake Bleed

SRAM MTB: Bleeding Edge Brake Bleed

SRAM MTB: Bleeding Edge-Bremsentlüftung
