New

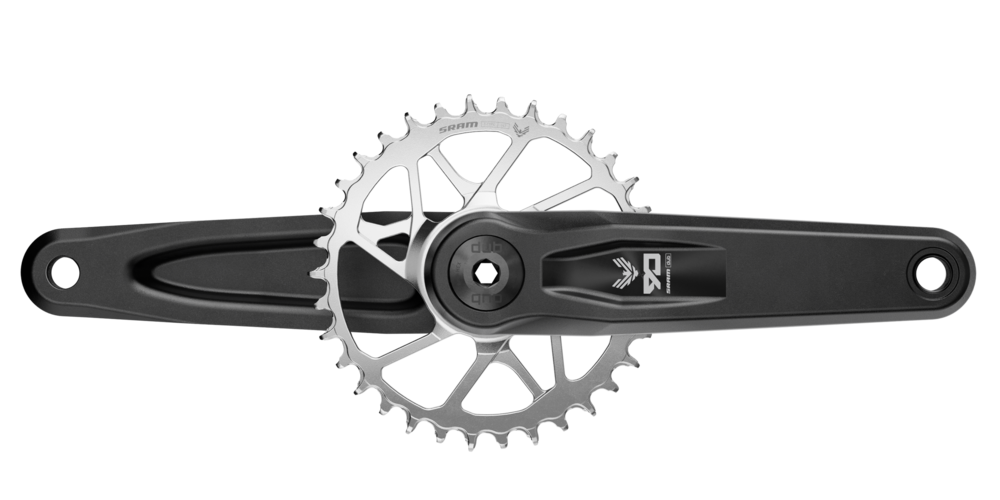

Eagle 90 Transmission Crankset

$155

{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Description
Find a Dealer

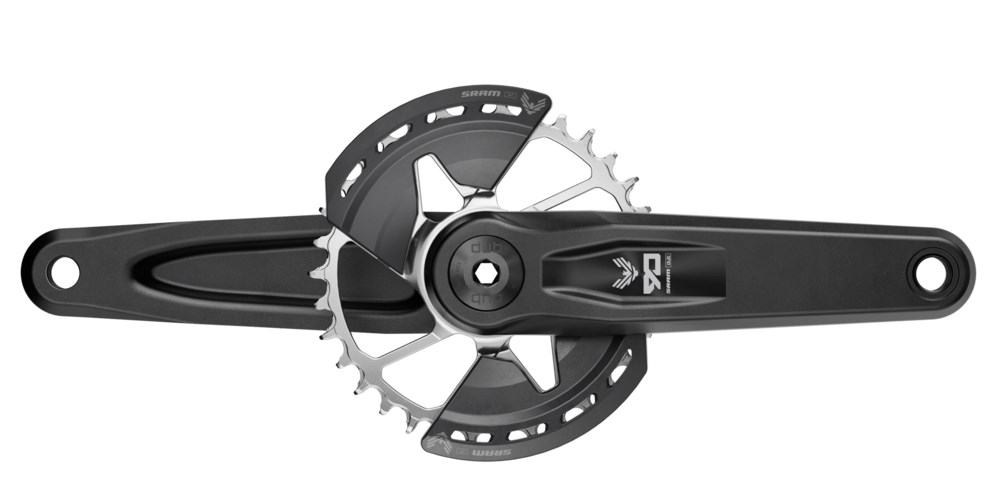

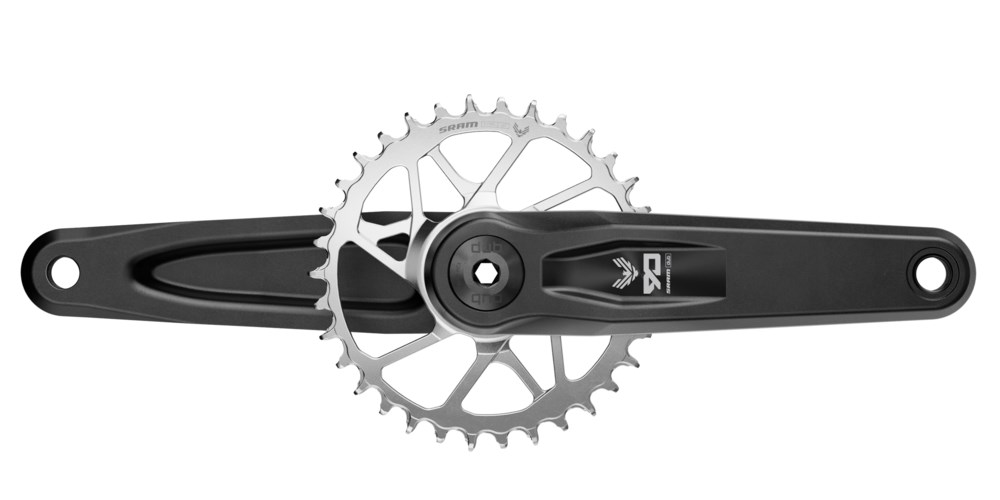

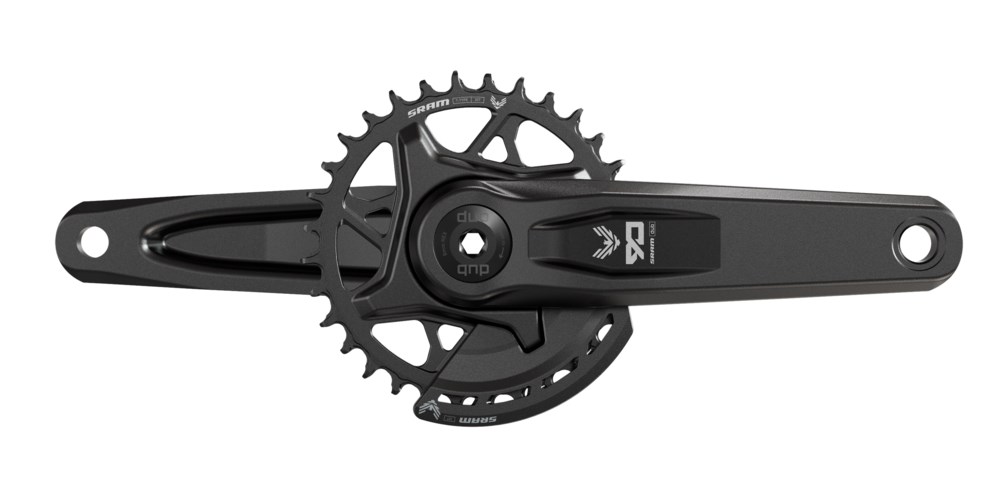

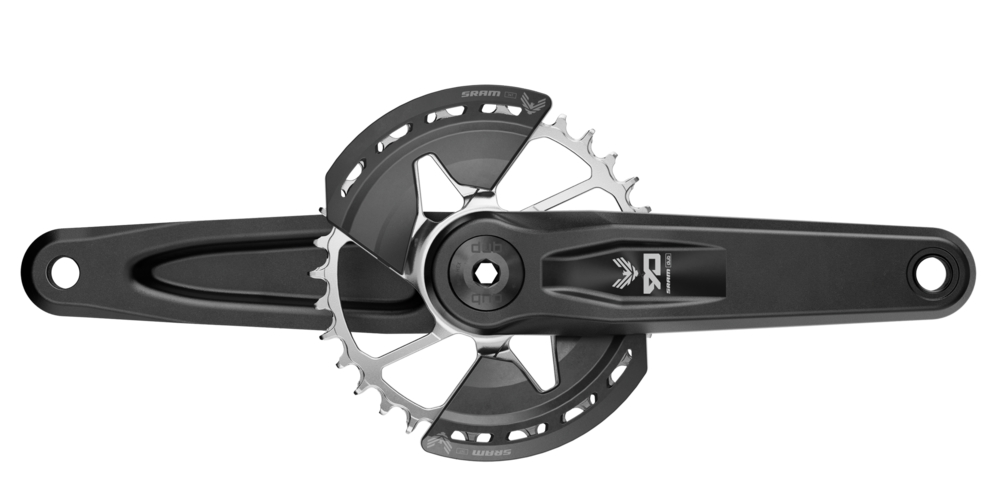

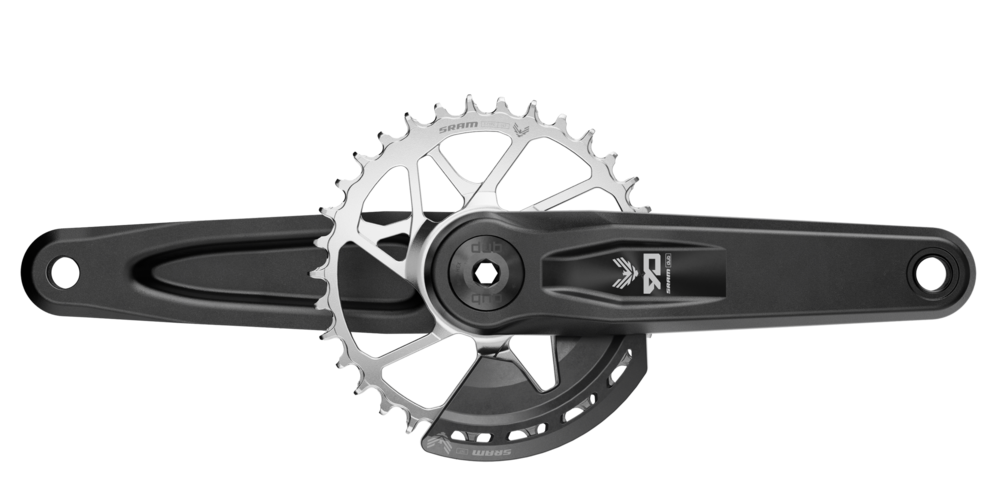

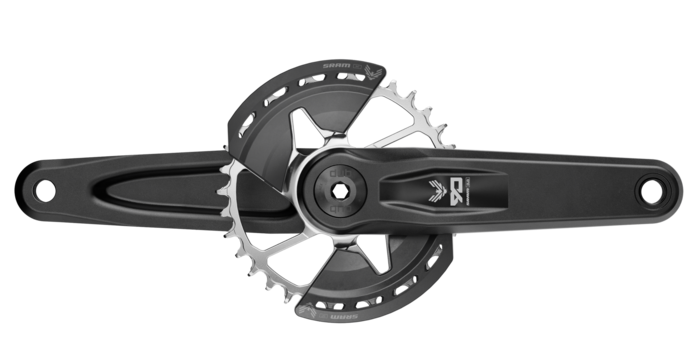

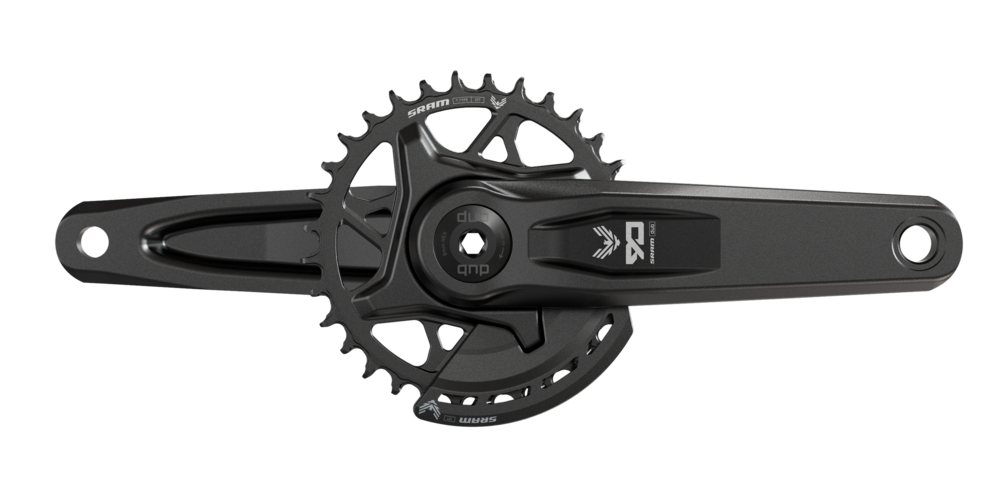

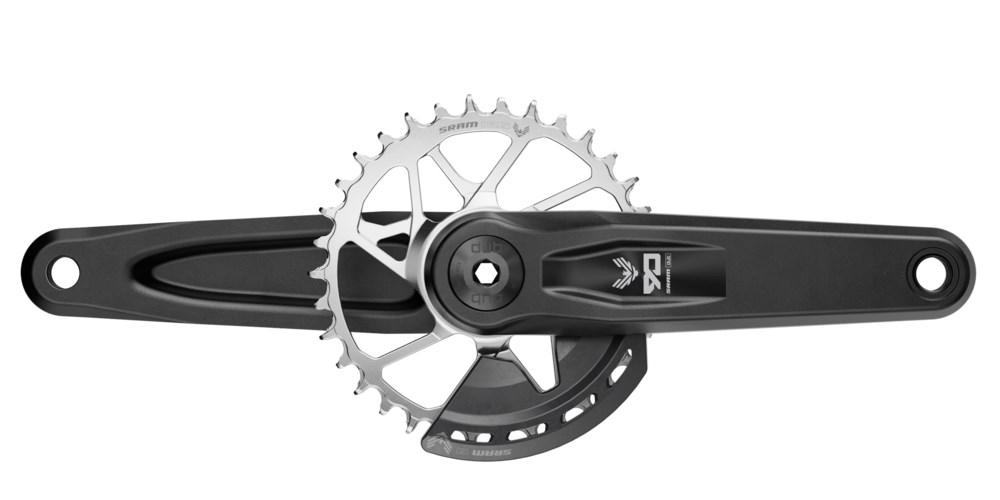

The new Eagle 90 crankset is a sleek, sturdy answer to a growing demand for robust and aesthetically pleasing components. And with availability down to shorter 155mm and 160mm lengths, it gives riders more freedom to build their bike, their way. Featuring 8-bolt chainring compatibility, the Eagle 90 crankset includes a silver stamped steel T-Type chainring with optional bashguards for durability and protection on the trail. 

Read More
Read Less
Msrp

$155

Model ID

FC-90-A1

Features
  • Forged aluminum crankarm with 8-bolt T-Type chainring compatibility.
  • Available in 175mm, 170mm, 165mm, 160mm and 155mm lengths.
  • Stamped steel chainring for maximum durability or aluminum chainring for minimal weight.
  • No-nonsense, no-compromise. Two independently removeable composite bashguards. Chainring size specific.
  • Bashguards shared with GX and X0 T-Type chainrings.
  • DUB Wide spindle for 55CL.
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.

Specifications

Speeds 12s T-Type
BB Compatibility All SRAM MTB WIDE DUB BBs
Chainring Size 30T, 32T, 34T
Crank arm length 155mm, 160mm, 165mm, 170mm, 175mm
Chainline 55.0mm
BB Spindle Interface DUB
Chainring material Aluminum, Steel
Bolt Circle Diameter (BCD) Direct Mount (DM)
Power meter No
Power Meter Type n/a
Chain Technology Eagle, T-Type
Drivetrain Configuration 1x
Technology (FD) n/a
Front Tooth Jump 0
Weight (g) 825
Weight Based On Engineering Estimate 170/32TST/2G/DUB wide (-70g/AL, -41g/1G)

Service

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
