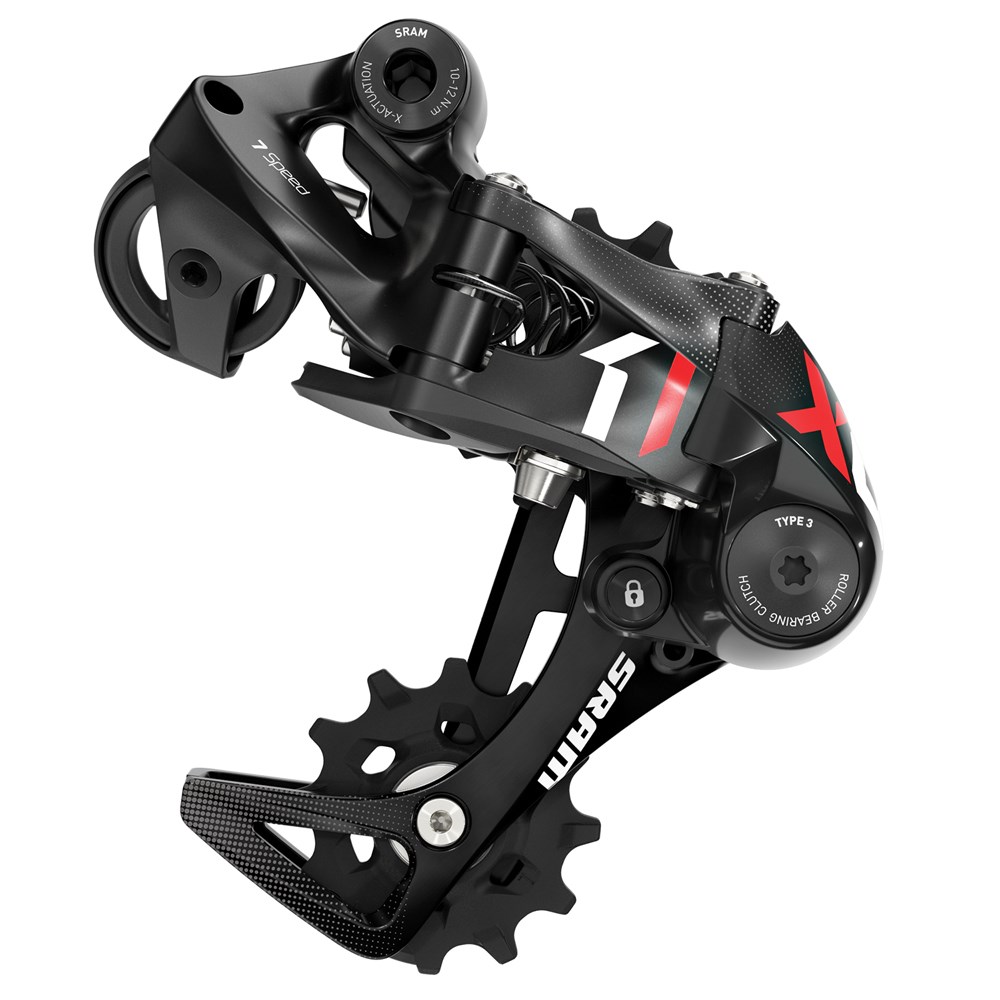

X01 DH X-HORIZON Rear Derailleur

New

Description

Engineered to maintain consistent chain gap across all seven gears, X-HORIZON™ delivers faster shifting and reduced shift force while eliminating vertical movement and ghost shifting. And with the Type-3 ROLLER BEARING CLUTCH™, you get the very best in chain management. It's quiet, consistent and long-lasting - a purpose-built workhorse for the parks and tracks.

Read Less

Model ID

RD-X0-1DH-A2

Features

Short or medium cage length fits your chainstay.
Built high and tight to steer clear of the trail.
CAGE LOCK™ makes wheel changes simple and quick.
Pair with X01 DH™ 7-speed shifter for full X-ACTUATION™ technology.

See more features

See less features

Technology

CAGE LOCK

With CAGE LOCK technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just push the cage forward to create slack and lock it into place.

ROLLER BEARING CLUTCH

ROLLER BEARING CLUTCH technology eliminates derailleur bounce and chain slap without sacrificing precision.

X-ACTUATION

Developed specifically for SRAM 1x, X-ACTUATION keeps shifting sharp and consistent across the entire cassette.

X-HORIZON

This rear derailleur’s “straight parallelogram” design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.

X-SYNC

SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

Specifications

Speed (RD)	10
Cable pull ratio	Exact actuation
Cage (RD)	Medium, Short
Max tooth	26, 28
Color (RD)	Black
Pulley bearings material	Steel
Cage material (RD)	Aluminum
Rear Derailleur Mount	MTB, UDH
Drivetrain Configuration	1x
RD Minimum (Cassette)	26
Shift Technology	Exact Actuation
Chain Technology	10 Speed Powerchain
RD Capacity	15, 17
RD Maximum (Cassette)	26, 28
RD Smallest (Cassette)	11
