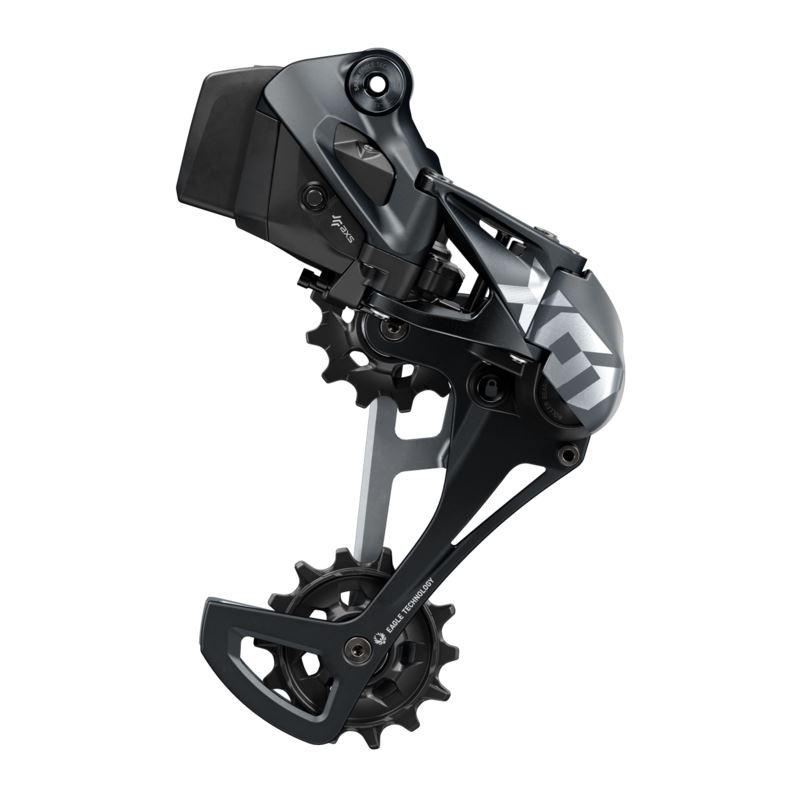

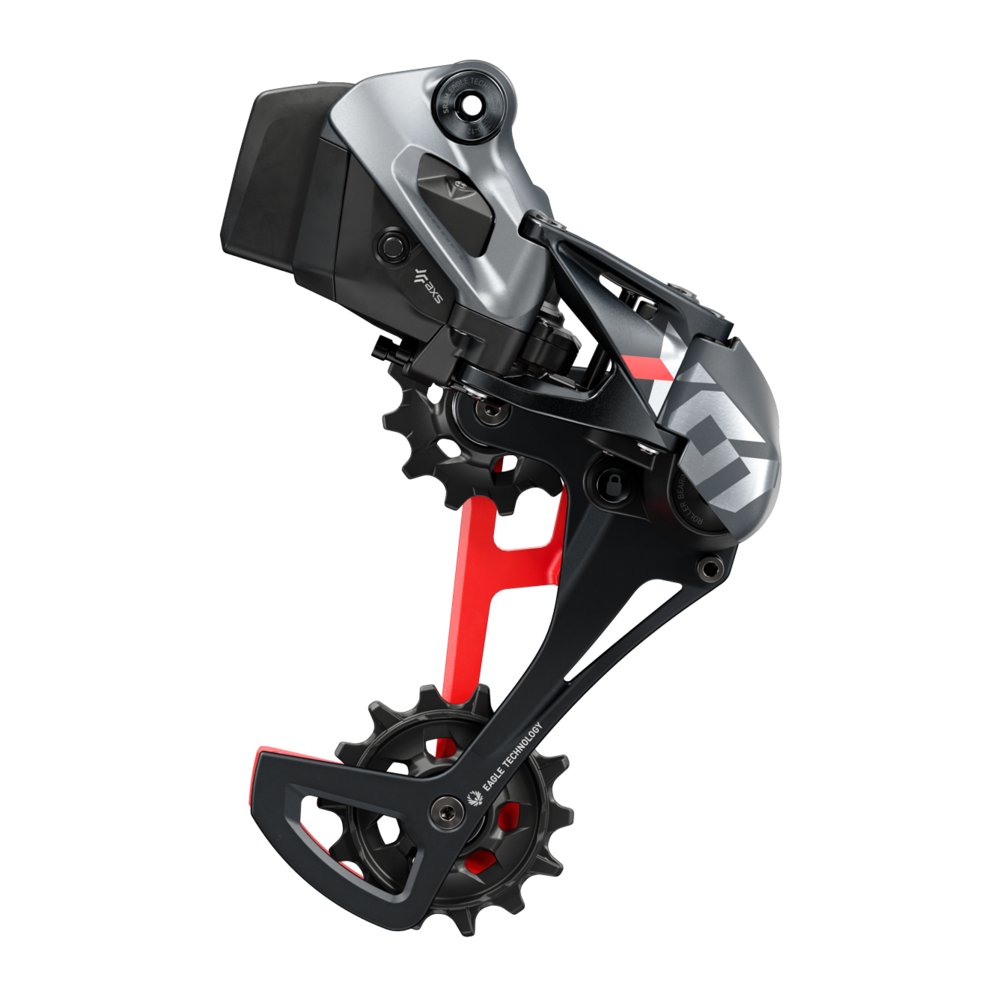

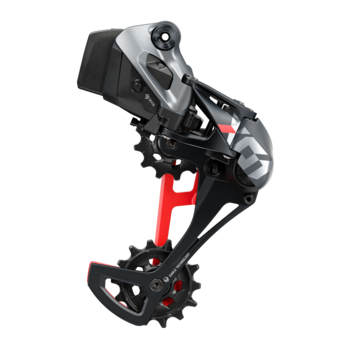

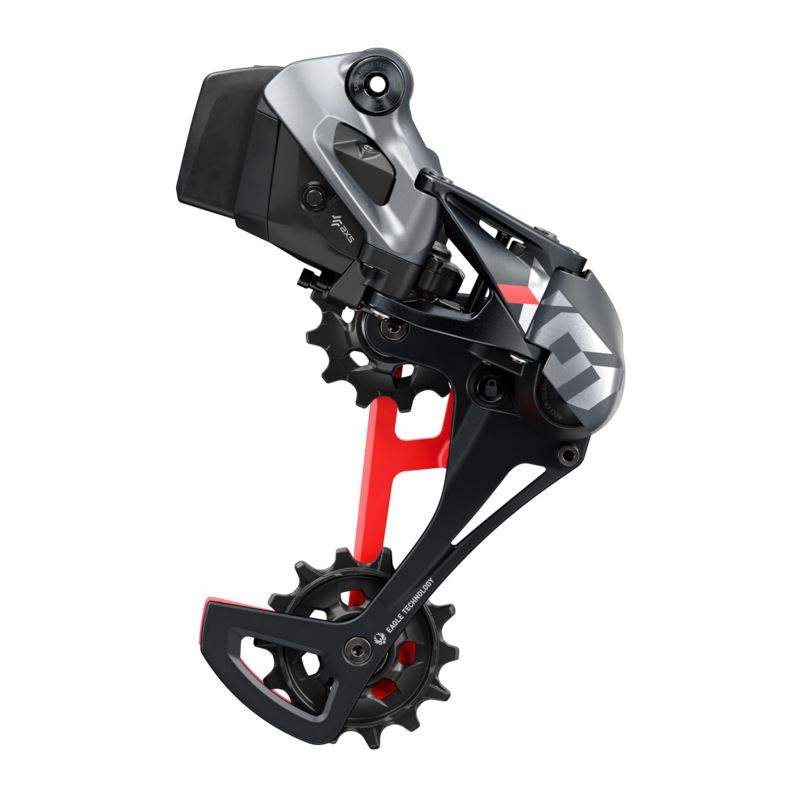

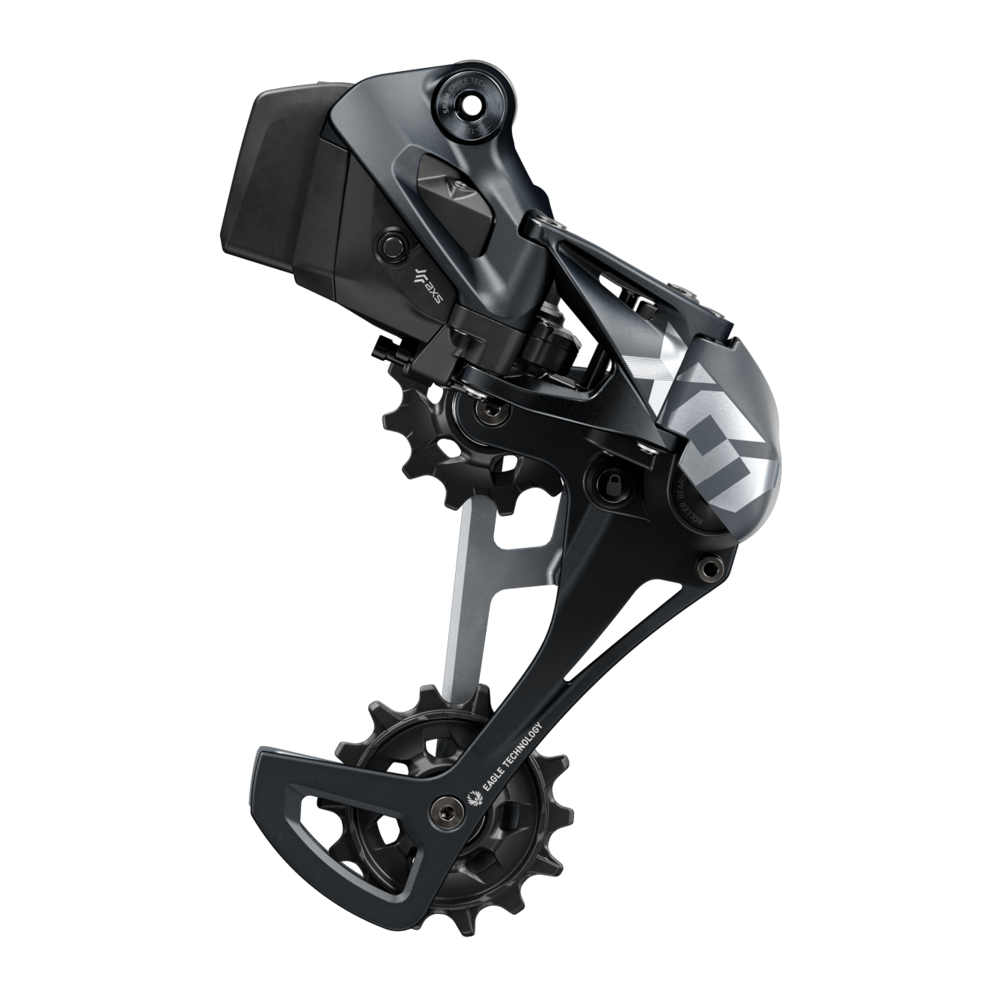

Name: X01 Eagle AXS Derailleur
Brand: SRAM
SKU: RD-X0-1E-A1

New

Description

It’s an all-new derailleur that’s specifically designed and optimized to be motor-driven instead of cable-actuated. AXS powered components enable customization and scale to an individual rider’s liking via the AXS App. It features a shorter cage for 10mm more ground clearance, with more chain wrap on the cassette to sit slightly further forward, and further inboard from mechanical Eagle. The Eagle AXS derailleur is smart enough to protect itself thanks to its incredibly resilient Overload Clutch. In the event of an impact, the motor gearbox disengages, giving the derailleur freedom to move, and instantly returns back to its position for a seamless experience for the rider. The system is tested to IP69K water and dust proofing standard for creek crossings, mud splatterings and the resulting post-ride pressure washings.

Read Less

Msrp

$538

Model ID

RD-X0-1E-A1

Features

Enduro focus and trail ready
Forged aluminum cage
Stainless hardware
Black/Polar colorways
Eagle technology
Overload Clutch protection
AXS enabled componentry software that makes it possible to both program and personalize new SRAM and RockShox components
System is completely water and dust proof to IPX7

See more features

See less features

Technology

CAGE LOCK

With CAGE LOCK technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just push the cage forward to create slack and lock it into place.

ROLLER BEARING CLUTCH

ROLLER BEARING CLUTCH technology eliminates derailleur bounce and chain slap without sacrificing precision.

X-HORIZON

This rear derailleur’s “straight parallelogram” design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.

X-SYNC

SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

Eagle

Eagle technology represents our newest 1x drivetrain technology. Eagle is a lighter, simpler, more durable, and easier to use drivetrain. Eagle features all-new 1x components, engineered for even greater durability and performance while maintaining a significant weight advantage over other drivetrain solutions. Eagle technology also provides an expanded gear range of 520%, which is equal to 2x11 drivetrains.

Learn More

AXS

AXS is SRAM’s new bike component integration system that connects electronic bicycle components and software. The SRAM AXS app allows riders to see battery status, change component behavior, personalize controls, get maintenance reminders, and update firmware.

Specifications

Cage (RD)	n/a
Cable pull ratio	n/a
Speed (RD)	12
Color (RD)	Lunar, Red
Cage material (RD)	Aluminum
Pulley bearings material	Steel
RD Maximum (Cassette)	52
RD Minimum (Cassette)	50
RD Capacity	42
Chain Technology	Eagle
Rear Derailleur Mount	MTB, UDH
Max tooth	52
