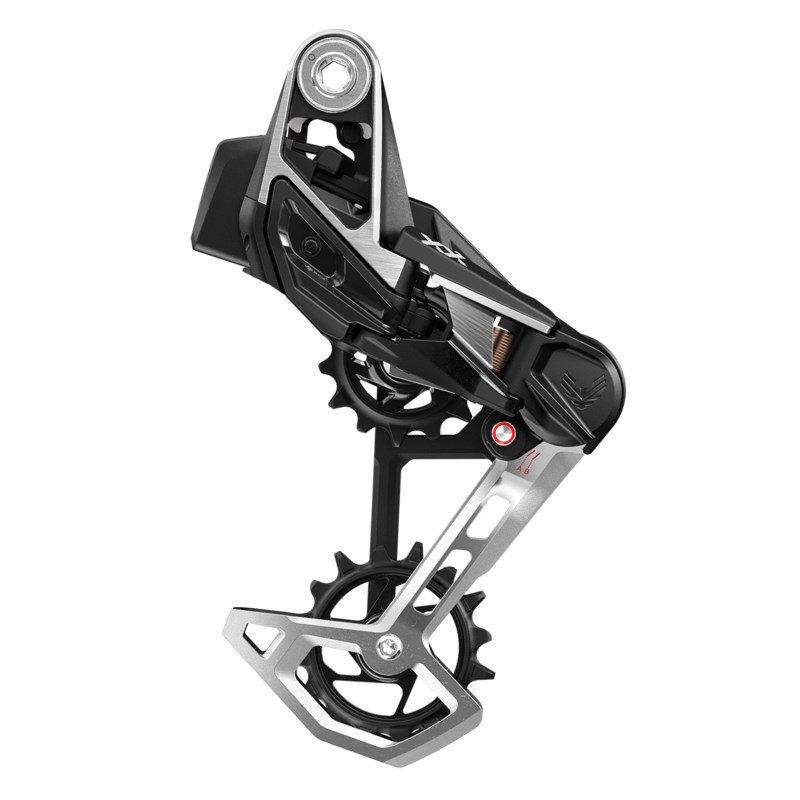

Name: XX Eagle Transmission Derailleur
Brand: SRAM
SKU: RD-XX-E-B1

New

Description

The XX Eagle Transmission derailleur foundationally changes the relationship between cassette and derailleur. Engineered as integrated, interdependent transmission components, the T-Type derailleur mounts around the wheel axle itself, contacting the cassette directly with a first-of-its-kind Hangerless Interface. Its game-changing Full Mount attachment method creates a far stronger connection and grips both sides of the frame. The new transmission derailleurs feature the same intuitive pairing and set-up procedure as our Eagle AXS derailleurs. A tucked-in profile houses replaceable skid plates that enhances dependability in high-pressure racing environments. To further its performance, the lower pulley called Magic Wheel keeps spinning if an object becomes lodged. Additionally, the XX Eagle Transmission derailleur features an overload clutch, accommodates common maintenance and features that real world riders really appreciate. This is unrivaled shifting performance, unprecedented strength. The XX Eagle Transmission derailleur delivers.

Read Less

Msrp

$650

Model ID

RD-XX-E-B1

Features

Hangerless Interface, Full Mount attachment method. More strength, reliability and unrivaled performance.
Install and pair via the reliable and familiar standard AXS set-up and pairing procedure.
Chain Management Features. Magic Wheel. Overload Clutch. Replaceable skid plates.

See more features

See less features

Technology

X-SYNC

SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

Eagle

Eagle technology represents our newest 1x drivetrain technology. Eagle is a lighter, simpler, more durable, and easier to use drivetrain. Eagle features all-new 1x components, engineered for even greater durability and performance while maintaining a significant weight advantage over other drivetrain solutions. Eagle technology also provides an expanded gear range of 520%, which is equal to 2x11 drivetrains.

Learn More

AXS

AXS is SRAM’s new bike component integration system that connects electronic bicycle components and software. The SRAM AXS app allows riders to see battery status, change component behavior, personalize controls, get maintenance reminders, and update firmware.

Specifications

Speed (RD)	12
Cable pull ratio	n/a
Cage (RD)	n/a
Max tooth	52
Color (RD)	Silver
Pulley bearings material	n/a
Cage material (RD)	Aluminum
Rear Derailleur Mount	Full Mount
Drivetrain Configuration	1x
RD Minimum (Cassette)	52
Shift Technology	Wireless
Chain Technology	T-Type
RD Capacity	42
RD Maximum (Cassette)	52
RD Smallest (Cassette)	10
Weight (g)	450
Weight Based On	Engineering Estimate including Battery
