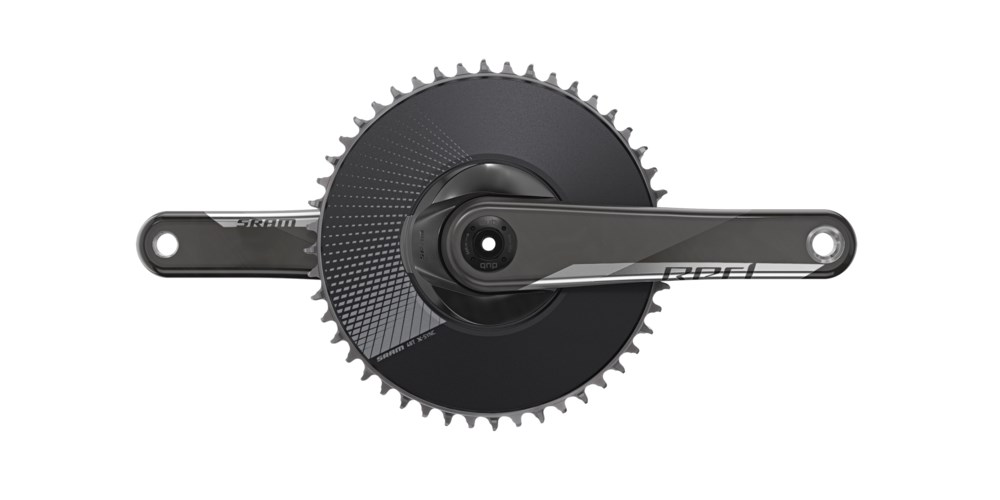

Name: RED 1 Crankset
Brand: SRAM
SKU: FC-RED-1-D1

New

Description

Triathlon. Time Trial. Cyclocross. Some disciplines are made for 1x. And while our X-Range™ 2x set up has integrated much of the simplicity of a 1x system, there are still times when a single ring is best. The SRAM RED® 1 crankset offers the most demanding racers the right mix of features—aerodynamics, durability and simplicity.

Read Less

Msrp

$728 - $743

Model ID

FC-RED-1-D1

Features

Single-ring drivetrain simplifies functionality and reduces weight
48 and 50t variants feature direct mount aero chainrings for better aerodynamics
Non-aero chainrings can be installed with a single tool, making gearing changes a breeze
SRAM X-SYNC™ wide-tooth, narrow-tooth chainring technology provides maximum chain control
Laser-etched chainring finish is more durable
DUB™ bottom bracket adds durability, simplicity and broad compatibility
Can be upgraded to a power meter

See more features

See less features

Technology

Exogram

Our Hollow Carbon Construction starts in the crank arm and extends into the crank’s spider, maximizing the stiffness to weight ratio.

X-SYNC

SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

DUB

The relationship between bottom bracket spindle and bearing is the core of DUB technology. It’s where stiffness meets durability. We took it a step beyond conventional thinking and made everything simpler—better integrating the relationship between chainring, crank, spindle and bottom bracket. It’s this approach to developing a complete system that equals better drivetrain performance.

X-Range

Road bikes are faster and more capable than ever before, and riders are expanding what’s possible with drop bar bikes. X-Range is gearing for today’s road riding. We completely reimagined road gearing for wider range, more useful and smoother gear progression, as well as smarter shift settings—enabled by AXS. With X-Range, you’re always in the right gear.

Learn More

Specifications

Speeds	12
BB Compatibility	All SRAM Road DUB BBs
Chainring Size	36T, 38T, 40T, 42T, 44T, 46T, 48T, 50T
Crank arm length	165mm, 167.5mm, 170mm, 172.5mm, 175mm, 177.5mm
Chainline	45.0mm
BB Spindle Interface	DUB
Chainring material	Aluminum
Bolt Circle Diameter (BCD)	107 BCD, Direct Mount (DM)
Chain Technology	Road Flattop D1, Road Flattop E1
Drivetrain Configuration	1x
Technology (FD)	n/a
Front Tooth Jump	0
